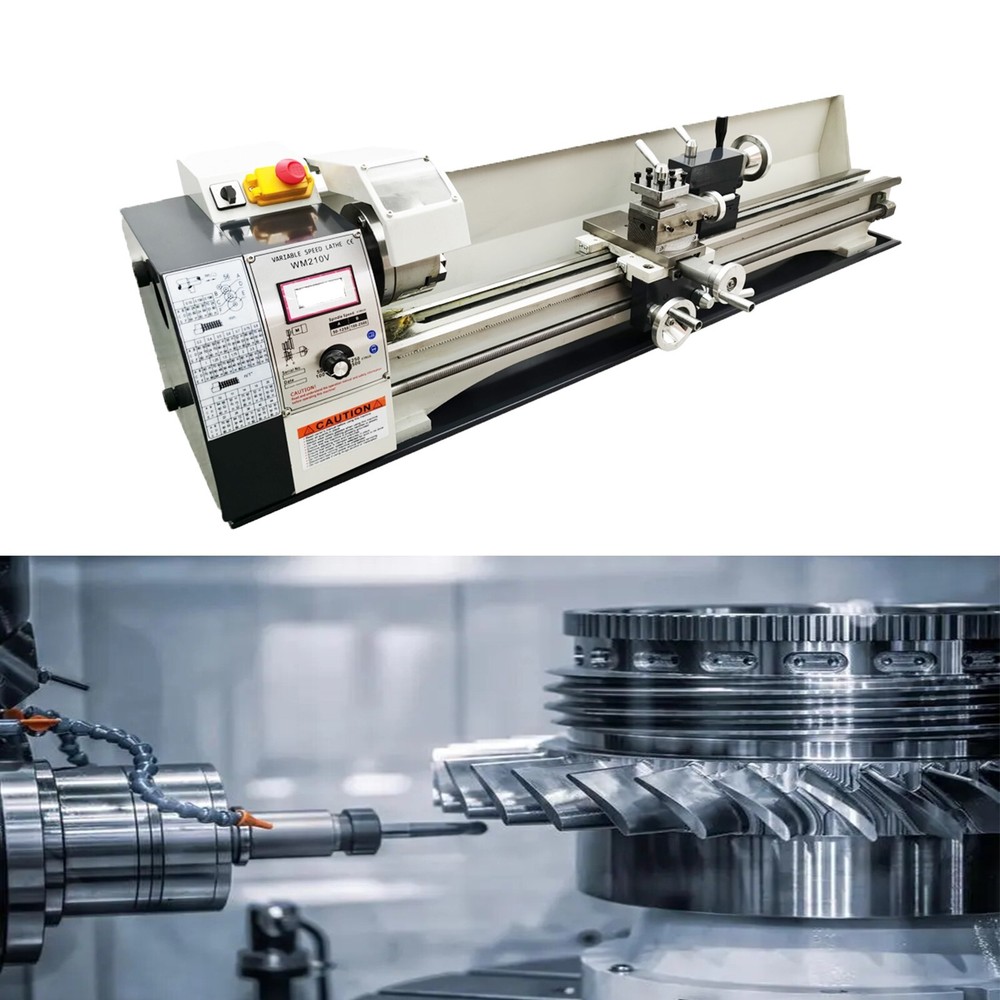

WM210V Inch Precision Instrument Metal Bench Lathe Brushless Motor 8″*39″ 110V

USD 1906.24 USD

SKU: xWqPHdm1

Brand: BANFLUXION

MPN: 028358

GTIN: 198462313971

Condition: New

Tags: 0.01mm 0.03mm-0.05mm 0.1mm-0.2mm 0.3mm-3mm 028358 1.26"(32mm) 10-44T.P.I 100-210V 1100W(1.5HP) 198462313971 3.94"(100mm) 39.37"(1000mm) 4.92"(125mm) 5.51"(140mm) 50-2500rpm 8.27"(210mm) AC110V 50-60Hz Banfluxion Horizontal four-station Inch screw thread Metal Lathe MT2 MT5 WM210V

Categories: Heavy Equipment, Parts & Attachments

Specifications

Spindle Taper	MT5
Range Of Inch Threads	10-44T.P.I
Machine Type	Metal Lathe
Automatic Feed Range	0.1mm-0.2mm
MPN	028358
Spindle Bore	1.26"(32mm)
Concentricity Tolerance	0.03mm-0.05mm
Spindle Rotation Speed	50-2500rpm
Swing Over Bed	8.27"(210mm)
Brand	BANFLUXION
Precision Of The Spindle	0.01mm
Length Of Center	39.37"(1000mm)
Knife Rest Labour	Horizontal four-station
Max Clamping Diameter Of Chuck	4.92"(125mm)
Voltage	AC110V 50/60Hz
Model	WM210V
Tail Frame Taper	MT2
Thread Standard	Inch screw thread
Rotary Diameter Of Tool Rest	5.51"(140mm)
Power	1100W(1.5HP)
Width Of Lathe Bed	3.94"(100mm)
Range Of Metric Threads	0.3mm-3mm
UPC	198462313971

Model: WM210V. WM210V lathe 1 Base oil pan 1 English manual 1. Lathe Brushless Motor 8" 39" 110V. This new lathe has a center distance of 39.4", which is longer than any other lathe on the market, making it easy to process long pieces!
