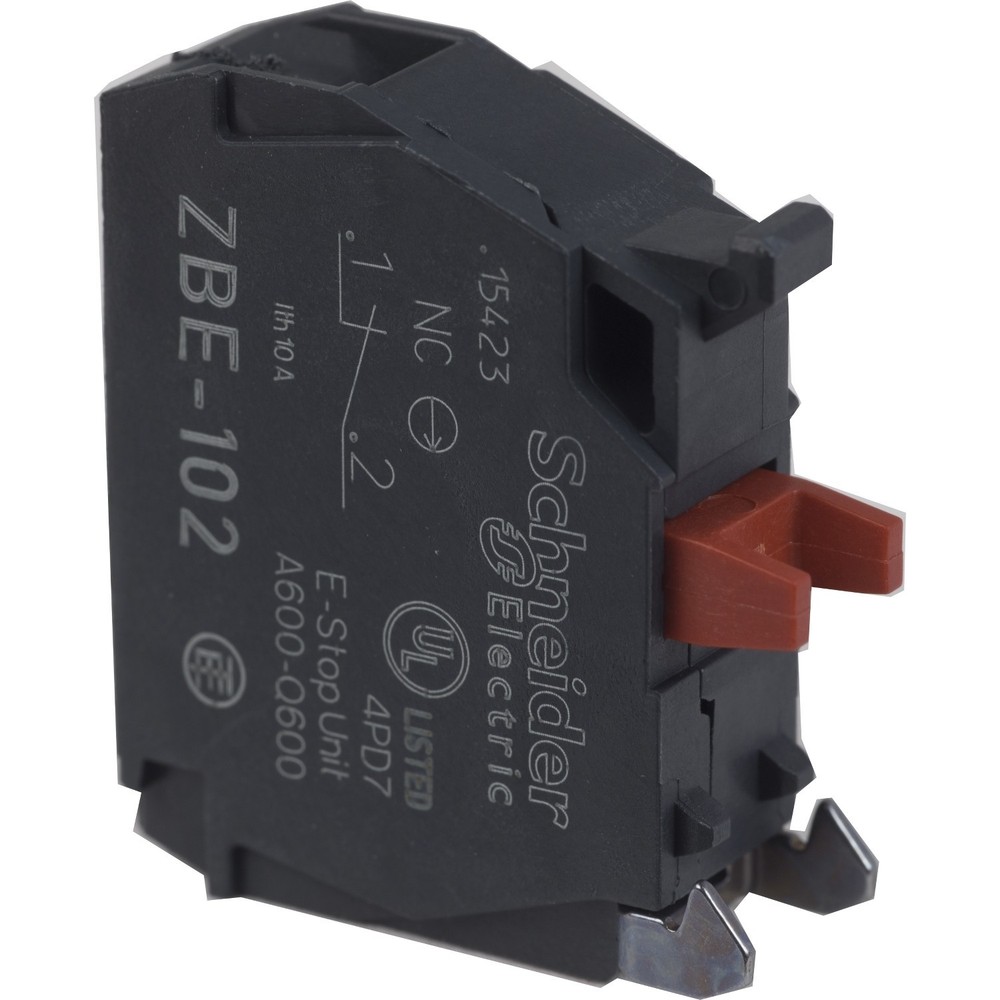

ZBE102 single contact block for head Ø22 1NC SCHNEIDER NEW SEALED BOX ZBE-102
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Fuse Type | N/A |
| MPN | ZBE102 |
| Item Length | 1 in |
| Switch Style | Push Button/Retractive |
| Smart Home Compatibility | N/A |
| Suitable For | Exterior |
| Port Type | N/A |
| Current Type | AC/DC |
| Unit Type | Unit |
| Item Height | 1 in |
| Features | Screwless Installation |
| Item Width | 0.2 Inch |
| Mounting Style | Clip-On |
| Color | Black |
| Current Rating | 1-15 A |
| Material | Silver Alloy |
| Brand | Telemecanique |
| Type | Contact Block |
| Model | ZBE102 |
| Coil Voltage | 24-250V |
| Country/Region Of Manufacture | France |
| Resistance Properties | Dust Resistant |
| Smart Home Protocol | N/A |
Harmony XB4/ZB4 Metal Push Buttons - ZBE102In Box when you buy at least five pieces. If you buy less than 5 you will got item in bags or envelope. Mainrange of productHarmony XB4Harmony XB5product or component typeContact blockdevice short nameZBEsale per indivisible quantity5IP degree of protectionIP20 IEC 60529contacts type and composition1 NCcontact operationSlow-breakcontact block typeSinglecontacts usageStandard contactsconnections - terminalsScrew clamp terminals = 1 x 0.22 mm² without cable end EN 60947-1Complementaryproduct weight0.02 lb(US) (0.011 kg)positive openingWith EN/IEC 60947-5-1 appendix Koperating travel0.06 in (1.5 mm) NC changing electrical state0.17 in (4.3 mm) total traveloperating force2 N NC changing electrical statemechanical durability10000000 cyclestightening torque7.08...10.62 lbf.in (0.8...1.2 N.m) EN 60947-1shape of screw headCross Philips no 1Cross pozidriv No 1Slotted flat Ø 4 mmSlotted flat Ø 5.5 mmcontacts materialSilver alloy (Ag/Ni)short-circuit protection10 A cartridge fuse gG EN/IEC 60947-5-1[Ith] conventional free air thermal current10 A EN/IEC 60947-5-1[Ui] rated insulation voltage600 V 3 EN 60947-1[Uimp] rated impulse withstand voltage6 kV EN 60947-1[Ie] rated operational current1.2 A 600 V AC-15 A600 EN/IEC 60947-5-10.27 A 250 V DC-13 Q600 EN/IEC 60947-5-10.1 A 600 V DC-13 Q600 EN/IEC 60947-5-13 A 240 V AC-15 A600 EN/IEC 60947-5-10.55 A 125 V DC-13 Q600 EN/IEC 60947-5-16 A 120 V AC-15 A600 EN/IEC 60947-5-1electrical durability1000000 cycles AC-15 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C1000000 cycles DC-13 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C1000000 cycles AC-15 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C1000000 cycles AC-15 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C1000000 cycles DC-13 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix Celectrical reliabilityΛ < 10exp(-7) 1 mA in clean environment EN/IEC 60947-5-4Λ < 10exp(-8) 5 mA in clean environment EN/IEC 60947-5-4mounting of blockFront mountingcondition of useMounting on push-button collarelectrical composition codeC1 <= 9C2 <= 7C3 <= 6C4 <= 4C5 <= 5C6 <= 3C7 <= 4C8 <= 2C9 <= 3C12 <= 6M1 <= 6M2 <= 4M3 <= 4M5 <= 2M6 <= 2M7 <= 6M8 <= 4M9 <= 2SF1 <= 3SF2 <= 2MF1 <= 2MF2 <= 2C10 <= 2M4 <= 2C13 <= 1compatibility codeZBEEnvironmentprotective treatmentTHambient air temperature for storage-40...158 °F (-40...70 °C)ambient air temperature for operation-40...158 °F (-40...70 °C)standardsEN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C 4520UL 508CSA C22.2 No 14product certificationsBVCCCCSADNVGLGOSTLROS (Lloyds register of shipping)RINAULvibration resistance5 gn 2...500 Hz IEC 60068-2-6shock resistance30 gn 18 ms half sine wave acceleration IEC 60068-2-2750 gn 11 ms half sine wave acceleration IEC 60068-2-27NEW IN BOX IF YOU BUY THE BOX (5 UNITS) if not, you will receive just the item.
