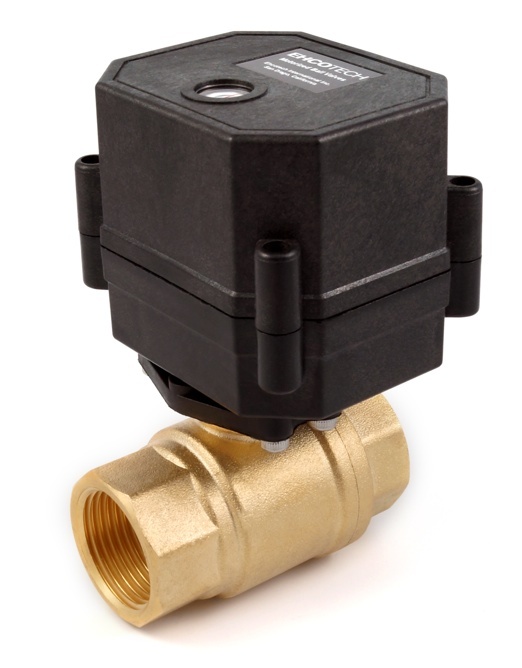

3/4″ NPT Motorized Ball Valve NC 9V 12 24 VDC/VAC 2-wire Normally Closed Brass
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Brand | EHCOTECH |
| MPN | M21BV-3/4-C1AW |
| Port Size | 3/4" NPT |
| Valve Body Material | Brass |
| Seal Material | PTFE / FKM (Viton) |
| Pressure Range | 0 to 215 psi |
| Type | Normally Closed, 2-wire |
| Gravity Feed Capable | Yes |
EHCOTECH M21BV-3/4-C1AW MOTORIZED BALL VALVE3/4" NPT | Brass Body | Normally Closed | 0 - 215 psi | 9 to 24 VDC/VAC Quality valves since 2004.GeneralShips within one business day from San Diego, CA2-way, bidirectionalNormally ClosedEnergize actuator to open valveDe-enrgize to close valve (closes with power supplied by internal capacitor)Visual valve position indicatorExcellent choice for gravity feed applicationsExcellent choice for applications requiring long activation periodsPort Size 3/4" NPT (female) inlet / outlet portsOuter thread diameter / TPI (threads per inch): 1.050 inches / 14 TPIFull port design (3/4" or 20 mm internal port diameter)Straight through design (no directional changes inside valve)Pressure and Temperature0 to 215 psiMax media temp: 265 F (130 C)Superior to solenoid valves in gravity feed and low pressure applicationsSuitable MediaWater, Air, Gases, Diesel, Gasoline, etc.Electrical / Wiring9 to 24-volt AC or DC (auto detects voltage)300 mA max while ball is turning (30mA max when held in open position)20" power cable with 2 lead wires (connect to hot and neutral; no polarity requirement)Energize actuator to open valve, De-Energize to close4 second cycle time from closed to open and vice versaInternal micro-switches stop current flow to motor when open/closed positions are reachedValve MaterialsValve body: BrassPTFE (Teflon) Primary Seals, FKM (Viton) Secondary SealsMetal gearsDimensionsHeight: 4-3/16"Width: 2-1/2"Length: 2-7/8"Weight: 1 lb 0 oz Store Policies Customer service is our #1 priority. If you are not completely satisfied, please contact us and we will make it right!All orders are shipped within 1 business day30-day, hassle free returns6 month warranty on all motorized ball valves ← Please use store categories on the left side to explore our other valves Copyright © Ehcotech International Inc. 2015
