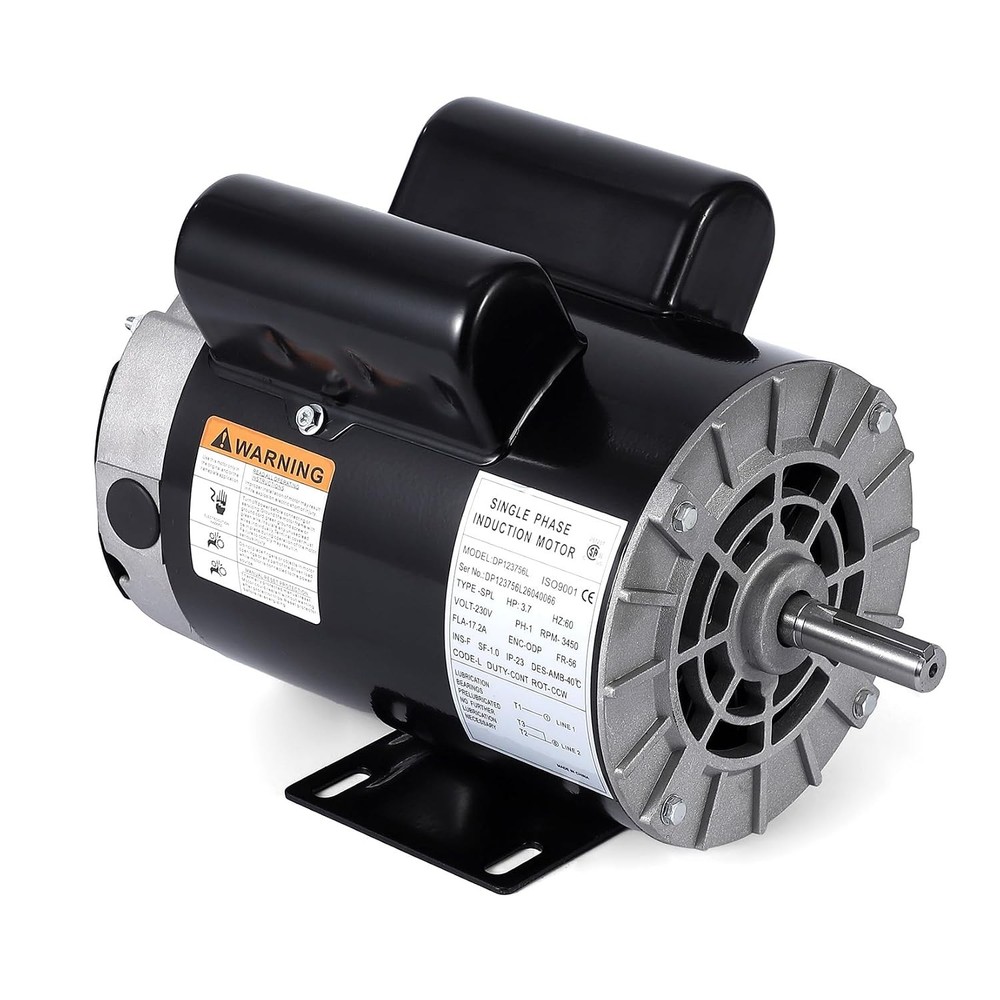

3.7HP Air Compressor Electric Motor 230V 56 Frame 17.2A 3450 RPM 5/8” Shaft

USD 141.93 USD

SKU: yiTzsinA

Brand: GARVEE

Condition: New

Tags: 1.88in 17.2A 230 V 3.7 3.7HP 3.7HP-5/8" Keyed Shaft 3450 RPM 43.7 Pounds 60Hz Air Compressor Motor DP123756L GARVEE Rolled steel shell Single Phase

Categories: Metalworking Equipment

Specifications

Brand	GARVEE
Type	Air Compressor Motor
Nominal Rated Input Voltage	230 V
Horsepower	3.7HP
Shaft Length	1.88in
Current	17.2A
Rated RPM	3450 RPM
Meterial	Rolled steel shell
AC Frequency Rating	60HZ
Item Weight	43.7 Pounds
Model Number	3.7HP-5/8" Keyed Shaft
Model Name	DP123756L
AC Phase	Single Phase

Continuous Duty for Demanding Applications: Rated for continuous compressor duty with service factor 1.0. NEMA-rated with thermally protected design for extended service life. Dual CW/CCW Rotation Flexibility: Supports both clockwise and counterclockwise rotation – easily switched via wiring.
