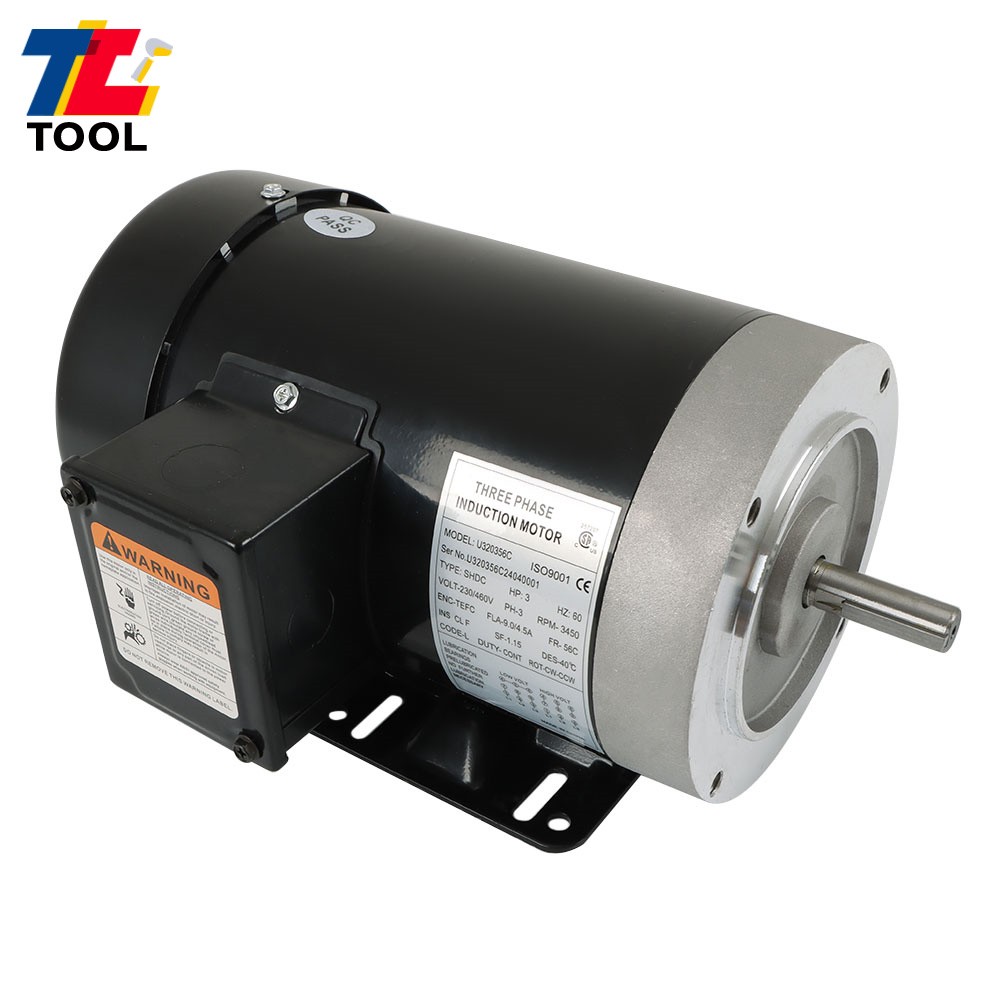

3 HP General Purpose Electric Motor 56C Frame 3450 RPM TEFC 230/460V 3 Phase

USD 193.43 USD

SKU: yBinygmL

Brand: Tool library

MPN: TL5744762

GTIN: Does not apply

Condition: New

Tags: 1 Year 1.88 in 230 V, 460 V 3450 RPM 3HP 5/8 in 56C 60 Hz 9.0 A/4.5 A Base-Mounted F (Max 311°F) General Electric Motor Induction/Asynchronous IP55 Reversible Rolled steel shell Spindle Motor Three Phase TL5744762 Tool library

Categories: Metalworking Equipment

Specifications

Brand	Tool library
MPN	TL5744762
Nominal Rated Input Voltage	230 V/460 V
Phase	Three Phase
Special Motor Construction	Spindle Motor
Shaft Diameter	5/8 in
Shaft Length	1.88 in
Base RPM	3450 RPM
Amps	9.0 A/4.5 A
IEC Frame Size	56C
Frequency Rating	60 Hz
Reversible/Non-Reversible	Reversible
Housing Material	Rolled steel shell
Model	General electric Motor
Mounting Type	Base-Mounted
IP Rating	IP55
Insulation Class	F (Max 311°F)
Motor Type	Induction/Asynchronous
Warranty	1 Year

Specification： Frequency Rating：60 Hz Reversible/Non-Reversible：Reversible Nominal Rated Input Voltage：230V/460V Rated Load (HP)：3 Special Motor Construction：Spindle Motor Shaft Diameter：５/8 in Enclosure Type： TEFC (Totally Enclosed Fan Cooled) Phase：Three Phase Insulation Class：F (Max 311°F) Mounting Type：Base-Mounted Pole :２ Amps：9.0A / 4.5A Motor Type：Induction/Asynchronous Base RPM：3450RPM IP Rating：IP55 Shaft Length：1.88in Housing Material：Rolled steel shell Model：General electric Motor NEMAFrame Size：56C Description: Amps .
