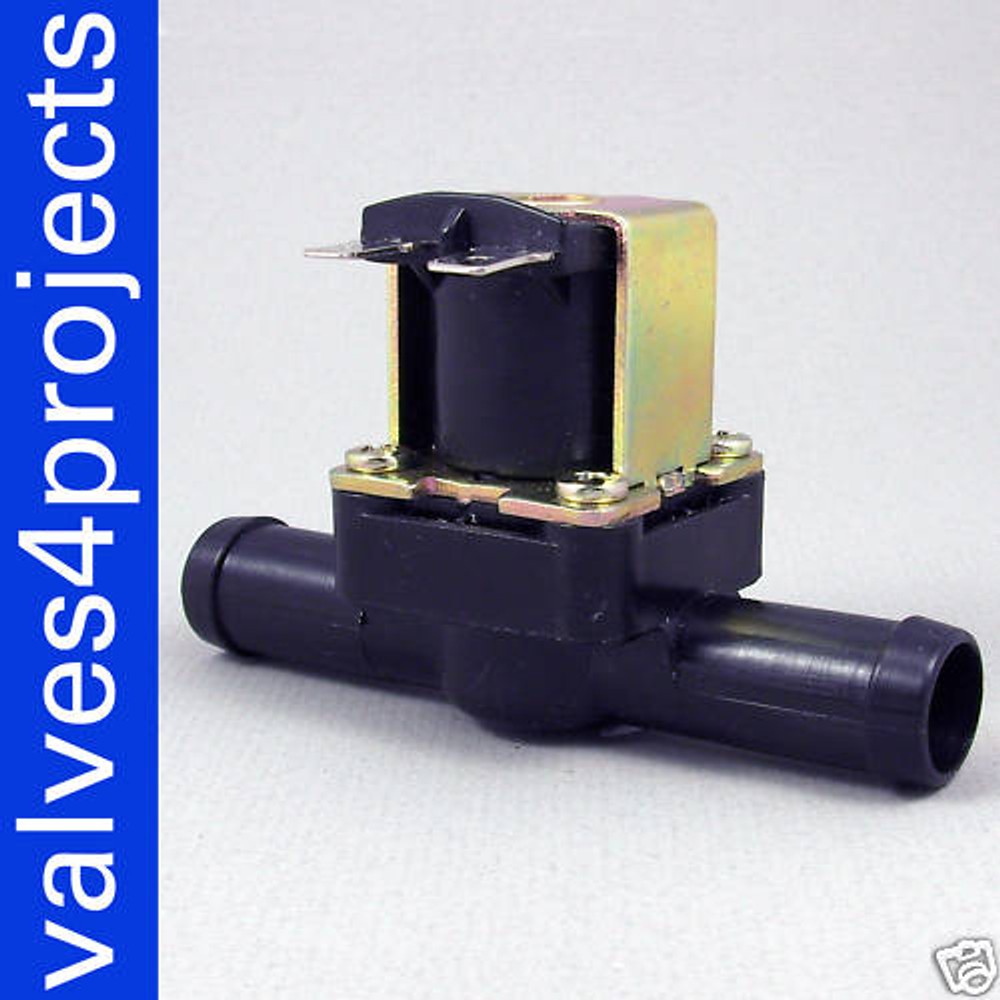

5/8″ 12 volt DC Gravity Feed Electric Solenoid Valve Hose Barbs Water 12VDC N/C
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Brand | EHCOTECH |
| Type | Valves & Flow Controls |
| MPN | EEB-CD-12VDC |
EEB-CS-12VDC Valves4projects — supplying high quality valves since 2004. Over 50,000 valve orders shipped. EHCOTECH EEB-CD-12VDC SOLENOID VALVE 5/8" HOSE BARBS | 12-Volt DC | Nylon Valve Body / NBR Seal | Normally Closed | GRAVITY FEED ONLY NOTE: This valve is for gravity feed only and will not work in pressurized systems General Great general purpose water valve for many projects 2-way, Normally Closed (energize to open, de-energize to close), unidirectional Very Fast acting Can be mounted in any position Note: valve body color may be black or natural nylon color Port / Orifice Size 5/8" hose barb inlet / outlet ports (for 5/8" inside diameter hose) Internal orifice diameter: 8 mm (about 3/8") Pressure and Temperature 3-Foot Water Column Maximum (Gravity Feed Only) Max media temp: 175° F (80° C) Suitable Media Water Low viscosity fluids compantible with valve materials DO NOT use with fuels Coil / Electrical 12-Volt DC / 600 mA Standard 1/4" spade connectors for electrical connection (connectors available in hardware stores, auto parts stores etc.) Wires can also also be soldered to the terminals No polarity requirements (connect positive to one termial and negative to the other) Valve Materials Valve body: Nylon Plunger and plunger guide tube: Stainless Steel (300 and 400 series) Diaphragm: NBR Diaphragm plate: Polyoxymethylene (POM) Dimensions Height: 2-3/8" Width: 1-7/16" (without electrical connectors) Length: 3-5/8" Weight: 4 oz Store Policies If you are not completely satisfied, please contact us and we will make it right! 12 month warranty Copyright © Ehcotech International Inc. 2023
