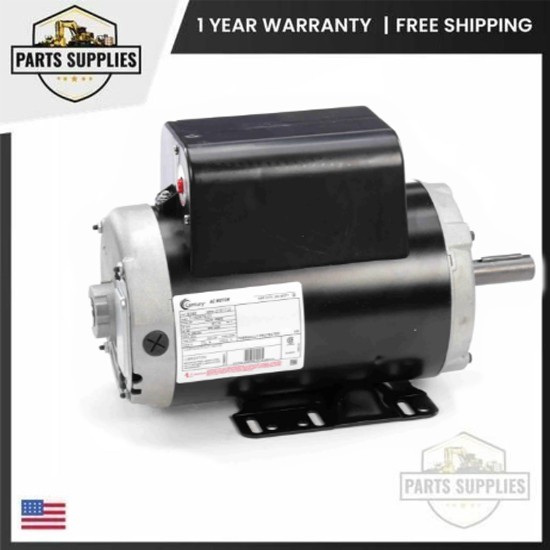

B386 Century Motor Single Phased 5 HP 3.7 kW 60 Hz 3450 RPM for Air Compressor

USD 560.21 USD

SKU: BQaI73ms

Brand: Century

MPN: UB386

GTIN: Does Not Apply

Condition: New

Tags: 0.875 in ( 22.23 mm ) 1 Year 1.15 14.56 in ( 369.82 mm ) 2.31 in ( 58.67 mm ) 208/230 V 22.0 A 3.7 3.7 kW 3450 RPM 40 °C (104 °F) 47 lbs ( 21.32 Kg ) 5.0 HP 60 Hz 8.75 in ( 222.25 mm ) Across The Line Ball CENTURY Clockwise Continuous Drip Proof Keyed Motor R56HZ Rigid Base Rolled Steel Thermally Protected UB386 UB386, B386

Categories: Cleaning & Janitorial Supplies

Specifications

MPN	UB386
Brand	Century
Interchange Part Numbers	UB386, B386
Type	Motor
Part Type	Motor
Compatible Equipment Make	Century
Output HP	5.0 HP
Output KW	3.7 kW
Voltage	208-230 V
Rotational Speed	3450 RPM
Service Factor	1.15
Frame	R56HZ
Enclosure	Drip Proof
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C ( 104 °F )
Frequency	60 Hz
Amperage	22.0 A
Duty	Continuous
Starting Method	Across The Line
Rotation	Clockwise
Mounting	Rigid Base
Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	14.56 in ( 369.82 mm )
Frame Length	8.75 in ( 222.25 mm )
Shaft Diameter	0.875 in ( 22.23 mm )
Shaft Extension	2.31 in ( 58.67 mm )
Weight	47 lbs ( 21.32 Kg )
Warranty	1 Year

Replaces OEM part number: UB386, B386. With its robust design, comprehensive specifications, and full range of certifications, the Century B386 motor ensures a long service life and dependable operation.
