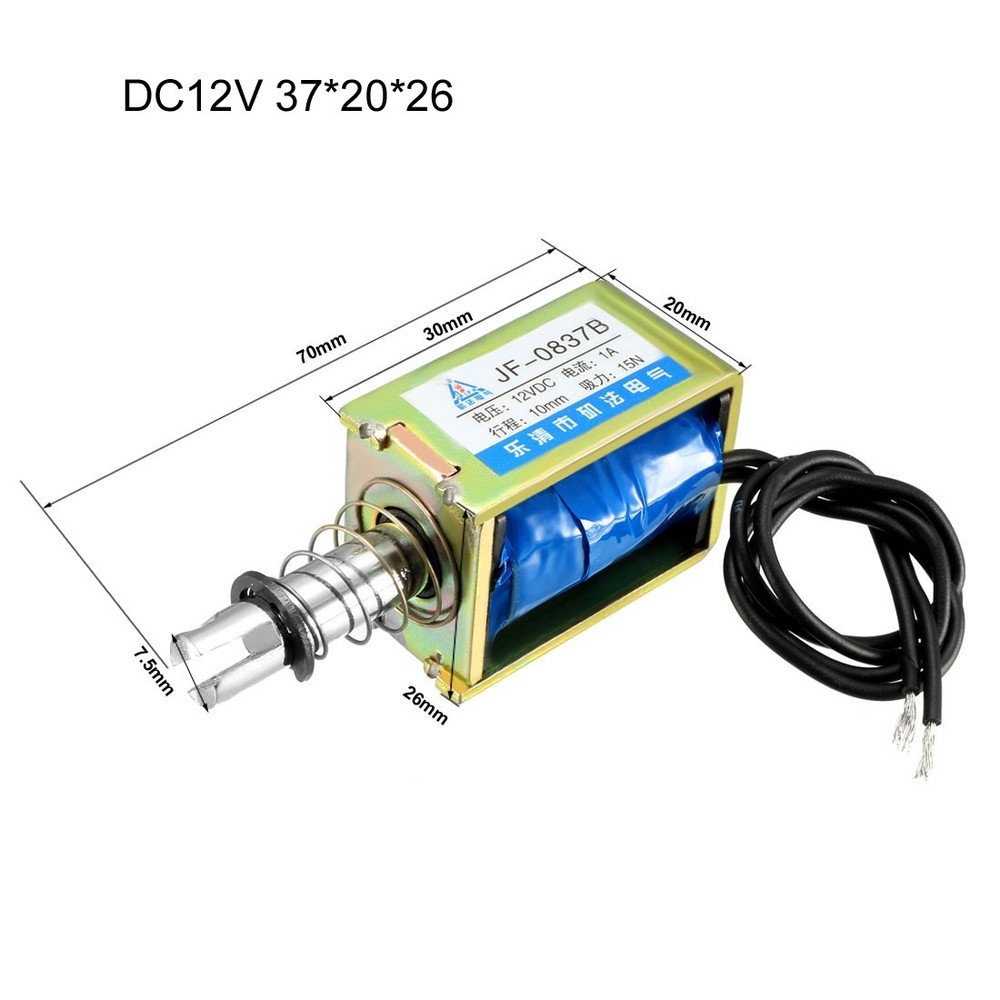

DC 12V 15N 10mm Push Pull Genre Open Frame Linear Motion Solenoid Electromagnet
Specifications
| Brand | Uxcell |
| Country Of Manufacture | CHINA |
| Model | JF-0837B |
| Main Color | Bronze Tone,Blue,Black |
| Material | Metal |
| Net Weight | 95g |
| Cable Length | 190mm/7.48" |
| Rated Voltage | DC 12V |
| Force | 15N |
| Type | Push Pull Type |
| Travel | 10mm |
| Push Bar Dia | 7.5mm / 0.3" |
| Total Length | 70mm / 2.76" |
| Mounting Hole Dia. | 2.5mm / 0.1" |
| Power | 12W |
| UPC | 784958118733 |
Description:Push pull Type, linear motion, plunger spring return, DC solenoid electromagnet.Support DC 12V voltage, high power, pull push type, linear motion, is easy to install.DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc. Note:Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand.
