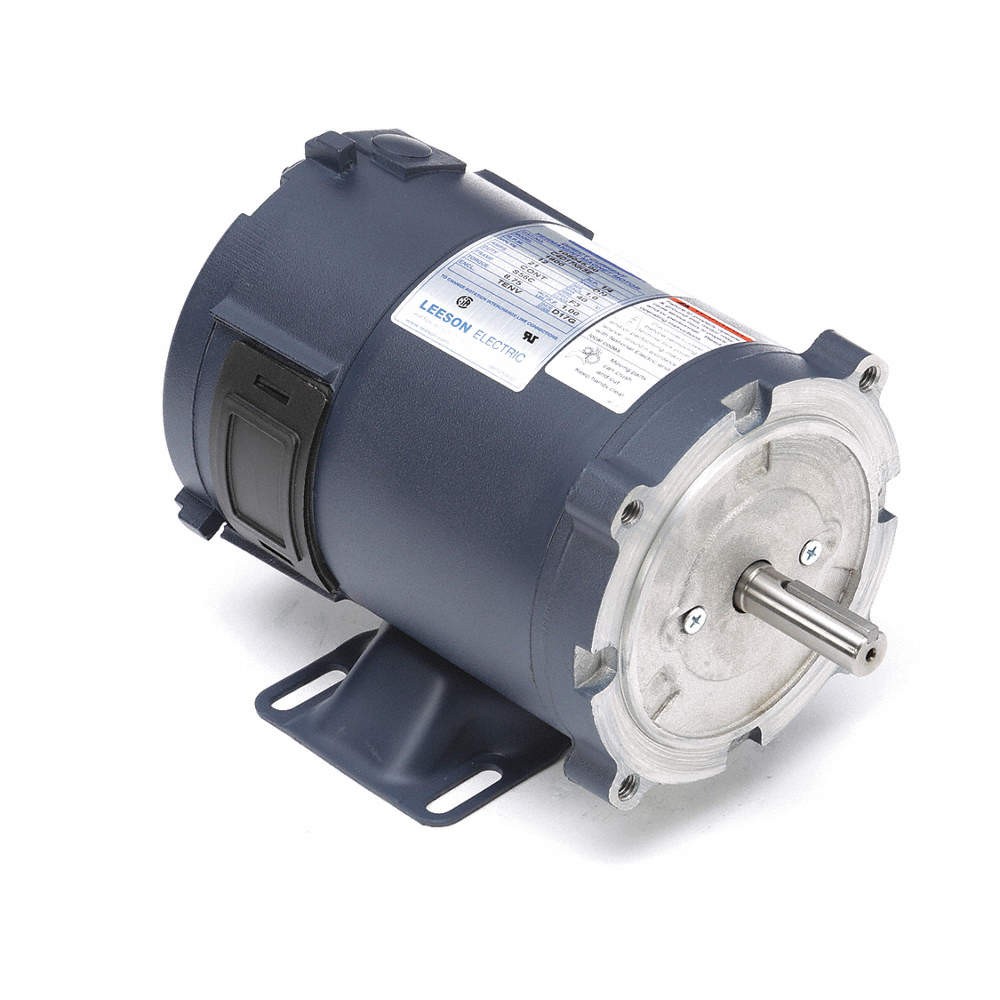

LEESON 108050.00 DC Motor,1/3 HP,1800 rpm,24V DC,56C,TEFC 48ZG52
USD 999.96 USD
Specifications
| Brand | LEESON |
| MPN | 108050.00 |
| Model | 108050.00 |
| UPC | 691720006733 |
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1/3 HP, Nameplate RPM 1,800, Voltage 24V DC, 13.5 A Full Load Amps, 56C Frame, Full Load Torque 11.7 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in.
