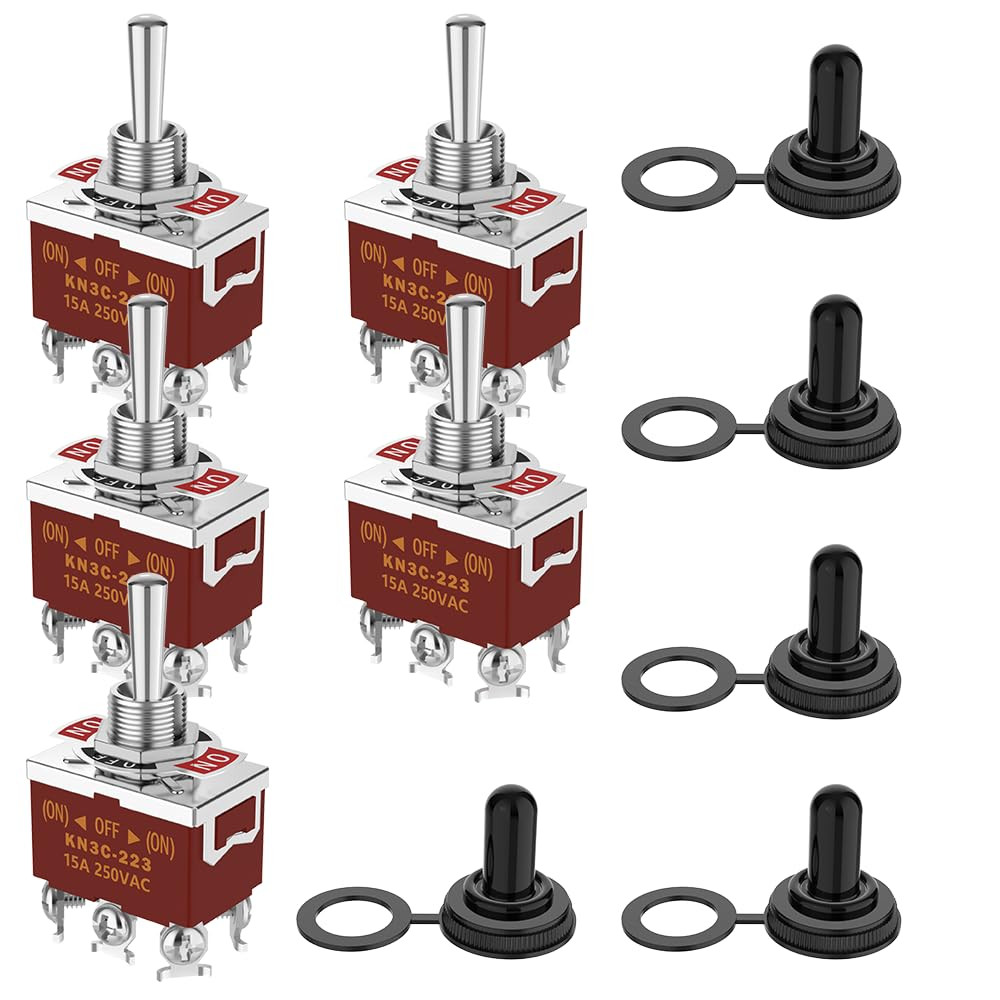

Momentary Toggle Switch, 6 Pin DPDT (On)-Off-(On) 30A 12VDC/15A 250VAC 3 Way He
USD 19.00 USD
Specifications
| Style | (ON)-OFF-(ON) 6 Pin |
| Current Rating | 15 Amps |
| Material Type | Metal, Plastic |
| Terminal | Screw |
| Operating Voltage | 250 Volts |
| Contact Material | Silver |
| Unit Count | 1.0 Count |
| Material | Metal, Plastic |
| Circuit Type | 2-way |
| Mounting Hole Diameter | 0.47 Inches |
| Connector Type | Screw |
| Part Number | TS-223F-5 |
| Maximum Current | 15 Amps |
| Mounting Type | Panel Mount |
| Operation Mode | ON-OFF-ON |
| Switch Type | Toggle |
| Coil Voltage | 250 Volts |
| UPC | 705353145216 |
【Specifications】6-pin connector type with (ON)/OFF/(ON) function. Rated for 30A at 12VDC,15A at 250VAC and 20A 125VAC. Switching Mode: (on)-off-(on). Features all-copper pins for rapid conduction and screw connections to ensure a stable current flow, making it ideal for demanding applications.
