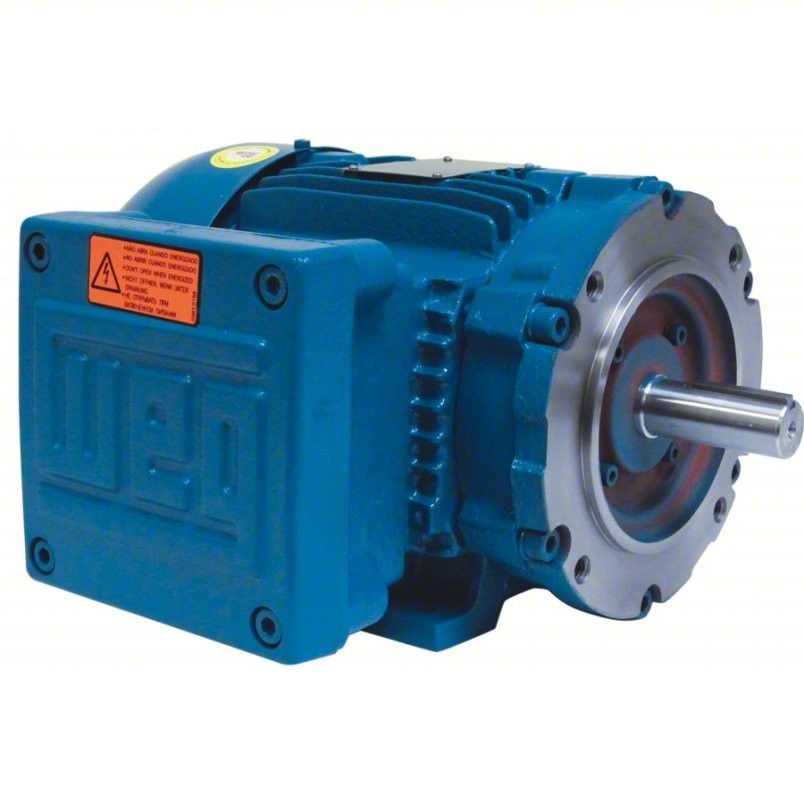

WEG 00318XT3ER182TC 3HP Explosion Proof Motor 1800RPM 182TC 230/460V 3Ph
USD 449.00 USD
Specifications
| Actual Rated Input Voltage | 208-230/460 |
| Inverter/Vector Duty Rating | Inverter Duty |
| IEC Frame Size | 182TC |
| AC Frequency Rating | 60 Hz |
| Special Motor Construction | Explosion-Proof Motor |
| Base RPM | 1760 |
| Shaft Type | Keyed |
| AC Motor Type | Induction/Asynchronous |
| MPN | 00318XT3ER182TC |
| Insulation Class | F (Max 311°F) |
| Mounting Type | Base-Mounted |
| Brand | WEG |
| Reversible/Non-Reversible | Reversible |
| Protection Against Liquids | Dripping Water |
| IP Rating | IP54 |
| Nominal Rated Input Voltage | 460 V |
| Model | WEG 00318XT3ER182TC |
| AC Phase | Three Phase |
| Protection Against Solids | Tools and Thick Wire |
Rated for Class I & II Division 1 atmospheres with certified VFD compatibility. NEMA Premium efficiency, TEFC enclosure, 182TC C-face footless mount. MPN 00318XT3ER182TC. Class I & II Division 1 explosion proof — VFD rated.
