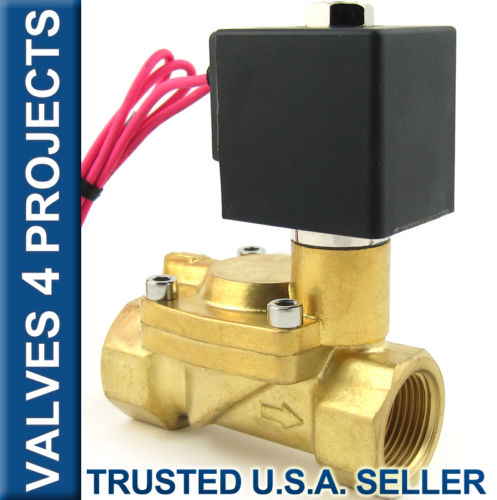

3/4″ 230 PSI Electric Solenoid Valve 110V / 120V AC BRASS FKM/VITON B22V NC

USD 49.95 USD

SKU: MIYUBXme

Condition: New

Tags: 110-Volt / 120-Volt AC 230 PSI 60 Days B22V-3/4-CS-120VAC EHCOTECH Money Back Normally Closed Returns Accepted Seller Solenoids Viton

Categories: Safety Signs & Traffic Control

Specifications

Return Shipping Will Be Paid By	Seller
All Returns Accepted	Returns Accepted
Item Must Be Returned Within	60 Days
Refund Will Be Given As	Money Back
Type	Normally Closed
Voltage	110-Volt / 120-Volt AC
Max Pressure	230 PSI
Diaphragm Material	VITON
Brand	EHCOTECH
MPN	B22V-3/4-CS-120VAC

General 3/4" NPT Ports (1.050" outer thread diameter); NPT is the U.S. standard pipe thread110/115/120-Volt AC2-way, Normally Closed (energize to open, de-energize to close)FKM (Viton) diaphragmLarge internal orifice (5/8" or 16 mm internal orifice diameter)Cv value: 4.8Pressure and Temperature0 to 230 psiMax media temp: 265° F (130° C)Suitable Media Water, Air, Various Gases Diesel Fuel, Gasoline, GlycolOther media compatible with FKM (Viton)Electrical110/115/120-Volt AC / 22 WattsCoil tempreature will stabilize between 155° and 185° F during long activation periods (typical for general purpose solenoid valves)Contact us regarding applications requiring a very large number of cumulative activation hours

3/4″ 230 PSI Electric Solenoid Valve 110V / 120V AC BRASS FKM/VITON B22V NC
